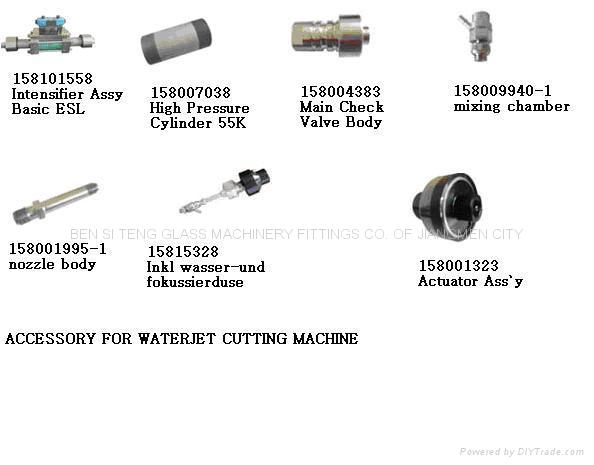

SAPRE PART AND ACCESSORY FOR WATERJET CUTTING MACHINE
CODE PART NAME
158101558 Intensifier Assy Basic ESL
(Long body)/(short body)
158007038 High Pressure Cylinder 55K
158004383 Main Check Valve Body
1581000 Low-Pressure-Cylinde
158321276 End Cap
158007303 End Bell Assy Intensifier 55K Left
1581002 Sleeve Backup Seal
158010253 High Pressure Plunger Ceramic
158007026 Piston Biscuit
158007029 Spacer Biscuit
1582409 Spring,Electrical shift intensifier
158004694 Repair Kit Bleed Down Valve
B-1581313 Filter screen nozzle
C1585841 Bleed Down Valve Assy
P1581443 Filter Cartridge 0.45micron
A15810544 Pilot Valve Electrical Shift Intensifier
B1588346 Plunger Electrical Shift Intensifier
158002226 Actuator Pin
1585155-C Swivel Assy
1585910-B Swivel Repair Kit1/4"
1581313 Outlet Body
1585461 Shift Cable Guide Right Hand
11585462 Shift Cable Guide Left Hand
1581611 Shifting Pin
158002226 Actuator Pin
158006869 Valve Pilot
1582743 Valve Mechanical Schift
158010642 Check Valve Repair Kit
B1581163 Low-pressure Seal Kit H.O
B15801064 Low-Pressure Seal Kit ESL
158009940-2 Mixing chamber
158009940-1 Mixing chamber
158001995-1 Nozzle body 110mm
158001995-2 Nozzle body 205mm
158010200 Repair kit on/off valve II
158001959 Repair kit on/off valve
158001323 Actuator Ass`y
158003840 Actuator Ass`y II
1582409 Spring,Electrical shift intensifier
15815328 Inkl wasser-und fokussierduse
158006691 Pure water cutting head
